The PSHIC15 series of open frame AC/DC converters offers four different high voltage input models with 10.92-18.7 watts of output power. Each model in this series features high efficiency and reliability, is RoHS compliant, and they also have short circuit, over voltage, and over current protection. The dual output models in this series have the option of a three wire or four wire open frame and they work well with any two phases. All models in this series are safety class II and have a 3 year warranty. Please contact factory for order information.

• High Voltage Input Models • Dual Output Models Work Well with Any Two Phases • High Efficiency & Reliability • 3 Year Warranty • Short Circuit, Over Voltage, & Over Current Protection • Three Phase Three Wire or Four Wire Open Frame Available for Dual Output Models • RoHS Compliant • Safety Class II
Power (W)

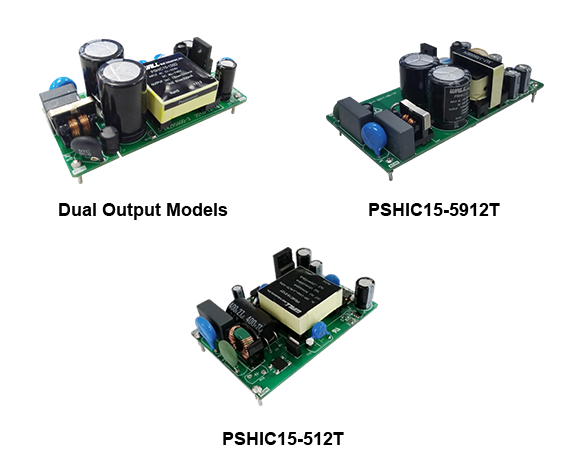

Case Size
PSHIC15-512D Input Voltage: 57~528 Output Voltage: 5.1, 12 Output Current: 1200mA, 400mA Output Power (W): 10.92 No. Outputs: D Case: Open Frame Size: 3.15" x 1.58" x 1.38" Get a Quote
PSHIC15-135D Input Voltage: 57~528 Output Voltage: 13.5, 5 Output Current: 1000mA, 300mA Output Power (W): 15 No. Outputs: D Case: Open Frame Size: 3.15" x 1.58" x 1.38" Get a Quote
PSHIC15-5912T Input Voltage: 160~264 Output Voltage: 5.9, 12, 12 Output Current: 1000mA, 400mA, 100mA Output Power (W): 15 No. Outputs: T Case: Open Frame Size: 3.94" x 1.97" x 1.81" Get a Quote
PSHIC15-512T Input Voltage: 165~264 Output Voltage: 5, 12, -12 Output Current: 500mA, 1200mA, 150mA Output Power (W): 18.7 No. Outputs: T Case: Open Frame Size: 2.76" x 1.9" x 0.91" Get a Quote
Specification Value
Input Voltage (Nominal): 115/220, 160/230, 165/230
Input Voltage Range: 57~528, 160~264, 165~264
Input Frequency: 47 to 63Hz
Output Voltage: -12, 5, 5.1, 5.9, 12, 13.5
Voltage Accuracy: Dual Outputs, Balanced Load: Primary Output: ±2%, Secondary Output: ±10%
PSHIC15-5912T: Primary Output: ±2%, Secondary Output: ±8.3% Max.
PSHIC15-512T: Primary Output: ±2% Max. , Secondary Output: ±3% Max.
Output Current: 100mA, 150mA, 300mA, 400mA, 500mA, 1000mA, 1200mA
Output Power (Watts): 10.92, 15, 18.7
Short Circuit Protection: Yes
Over Voltage Protection: Yes
Efficiency: Up to 79%
Isolation: See Table
Operating Temperature: PSHIC15-512D, PSHIC15-135D, & PSHIC15-5912T: -40 to +70ºC
PSHIC15-512T: -25 to +70ºC
Storage Temperature: PSHIC15-512D, PSHIC15-135D, & PSHIC15-5912T: -40 to +85ºC
PSHIC15-512T: -25 to +85ºC
Weight: Dual Output Models: 2.65oz (75g)
PSHIC15-5912T: 3.00oz (85g)
PSHIC15-512T: 1.98oz (56g)

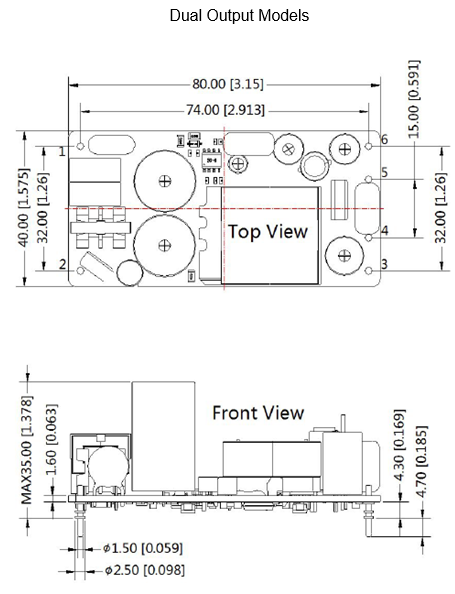

Dimensions: Dual Output Models: 3.15in x 1.58in x 1.38in (80mm x 40mm x 35mm)

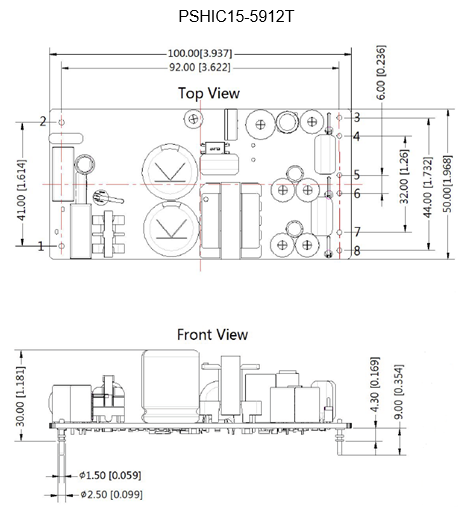

PSHIC15-5912T: 3.94in x 1.97in x 1.81in (100mm x 50mm x 30mm)

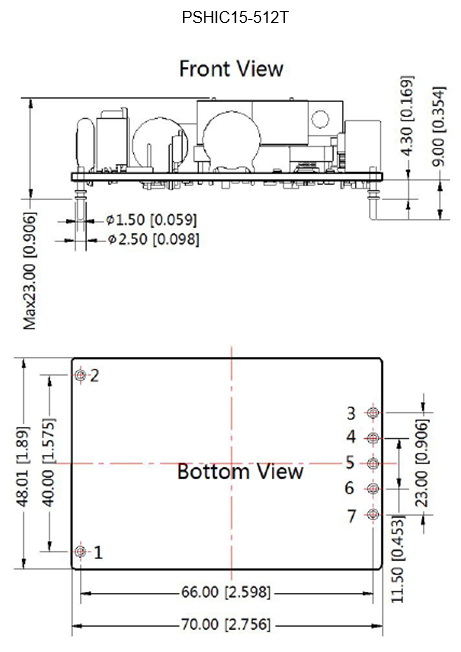

PSHIC15-512T: 2.76in x 1.9in x 0.91in (70mm x 48.01mm x 23mm)
Notes & safety
Notes: 1. Ripple and noise are measured by “parallel cable” method.
2. If product is not operated within required load range, product performance cannot be guaranteed to comply with all parameters in the datasheet.
3. Dual Output Models: In order to improve conversion efficiency when the module is working under high pressure, module may have certain audio noise, but this does not affect the reliability of the product.
4. Dual Output Models: Product picture is for reference only. Please refer to actual product.
5. PSHIC15-5912T products should be classified according to ISO14001 and related environmental laws and regulations, and shall be handled by qualified units.
6. Product customization is available, please contact factory for more information.
7. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: PSHIC512T Model Only: IEC60950/EN60950/UL60950
RoHS Compliance: Yes
