PSH800

The PSH800 series of AC/DC power supplies offers 800 watts of output power in a 11.42” x 4.76” x 2.68” enclosed case with fan and PFC. This series consists of single output models with an ac input voltage range of 180~264VAC. Each model in this series has built in remote sense, power good signal output, and remote on/off. It also has over load, over voltage, over temperature, and short circuit protection and GB4943, UL60950, and EN60905 safety approvals.

• AC Input Voltage Range of 180~260VAC (260~370VDC) • Built In Remote Sense • Built In Power Good Signal Output • Can Adjust from 20~100% Output Voltage by External Control 1-5V • Over Load, Over Voltage, Over Temperature and Short Circuit Protection • Remote ON/OFF • GB4943, UL60950, and EN60905 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSH800-12S Input Voltage: 180~264 Output Voltage: 12 Output Current: 66A Output Power (W): 800 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSH800-24S Input Voltage: 180~264 Output Voltage: 24 Output Current: 33A Output Power (W): 800 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSH800-48S Input Voltage: 180~264 Output Voltage: 48 Output Current: 16A Output Power (W): 800 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSH800-60S Input Voltage: 180~264 Output Voltage: 60 Output Current: 13A Output Power (W): 800 No. Outputs: S Case: Enclosed with Fan Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 180~264
Remote ON/OFF: Yes
PFC: >0.98
Input Frequency: 47 to 63Hz
Output
Output Voltage: 12, 24, 48, 60
Voltage Accuracy: ±3%
Output Current: 13A, 16A, 33A, 66A
Output Power (Watts): 800
Short Circuit Protection: Yes
Over Voltage Protection: 110-135%
Thermal Protection: Yes
General
Efficiency: Up to 90%
Environmental
Operating Temperature: -20 to 50ºC
Physical
Weight: 5.95lbs (2.7kg)

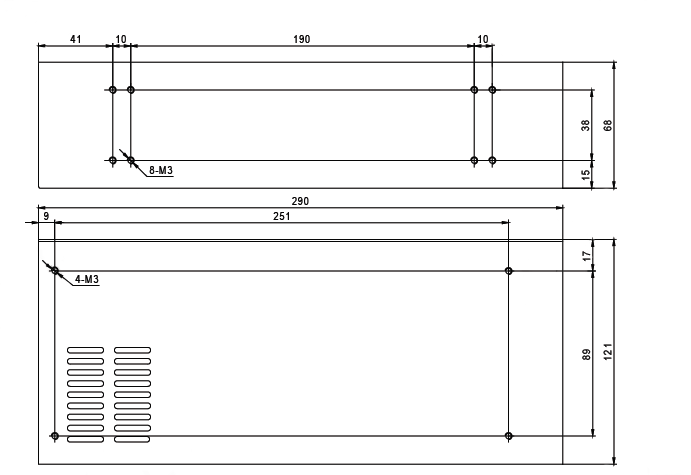

Dimensions: 11.42in x 4.76in x 2.68in (290mm x 121mm x 68mm)
Notes & safety
Notes: *Due to advances in technology, specifications subject to change without notice.
Safety Approvals: GB4943, UL60905, EN60950
