The PSDN-60 series of AC/DC DIN Rail power supplies provides 60 Watts of continuous output power. All models have a single output and a universal input range. All models are over load, over voltage, and short circuit protected.
|PSDN-60-12||Input Voltage: 88~264||Output Voltage: 12||Output Current: 5A||Output Power (W): 60||No. Outputs: S||Case: DIN Rail||Get a Quote|
|PSDN-60-15||Input Voltage: 88~264||Output Voltage: 15||Output Current: 4A||Output Power (W): 60||No. Outputs: S||Case: DIN Rail||Get a Quote|
|PSDN-60-24||Input Voltage: 88~264||Output Voltage: 24||Output Current: 2.5 A||Output Power (W): 60||No. Outputs: S||Case: DIN Rail||Get a Quote|
|PSDN-60-48||Input Voltage: 88~264||Output Voltage: 48||Output Current: 1.25 A||Output Power (W): 60||No. Outputs: S||Case: DIN Rail||Get a Quote|
|Input Voltage (Nominal):||115/230|
|Input Voltage Range:||88~264|
|Input Frequency:||47-63 Hz|
|Output Voltage:||12, 15, 24, 48|
|Output Current:||1.25A, 2.5A, 4A, 5A|
|Output Power (Watts):||60|
|Short Circuit Protection:||Yes|
|Over Voltage Protection:||115-150% Latch Off|
|Efficiency:||Up to 88%|
|Isolation:||4242VDC (1 minute)|
|Operating Temperature:||-20 to 70°C|
|Storage Temperature:||-40 to 85°C|

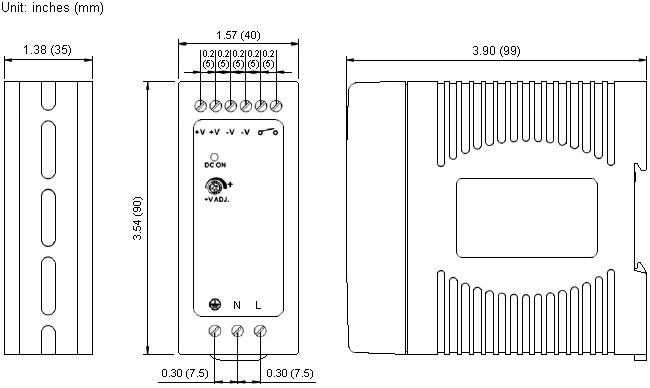

|Dimensions:||1.57" x 3.54" x 3.90" (40 x 90 x 99 mm)|
|Notes & safety|
|Notes:||1. Ripple & noise is measured at 20MHz bandwidth by using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel.
2. Tolerance includes set up tolerance, line regulation, and load regulation.

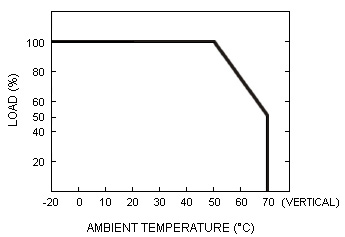

3. Derating may be needed under low input voltages. Please check the derating curve for more details.
4. The power supply is considered a component, which will be installed into final equipment. The final equipment must be
re-confirmed that it still meets EMC directives.
5. In parallel connection only one unit may operate if the total output load is less than 5% of the rated load.
Due to advances in technology, specifications subject to change without notice.
|Safety Approvals:||UL 508, TUV EN60950-1, UL1310 NEC class 2|
|TUV Efficiency Level:||TUV EN60950-1|
