PSDN-40

The PSDN-40 series of AC/DC DIN Rail power supplies provides 40 Watts of continuous output power. All models have a single output and a universal input range. All models are over load, over voltage, and short circuit protected.

● Single Output ● UL1310 Class 2 Power Unit / LPS Pass ● RoHS Compliant ● High Operating Temperature up to 70°C ● Brown Out Protection ● UL508 (Industrial Control Equipment) Listed ● True DC OK Signal Output ● High Efficiency, Long Life, and High Reliability ● Withstand 5G Vibration Test ● All Using 105°C Long Life Electrolytic Capacitors ● Universal AC Input 88~264VAC ● Short Circuit, Over Load, and Over Voltage Protection ● Installed on DIN Rail TS35 / 7.5 or 15
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSDN-40-15 Input Voltage: 88~264 Output Voltage: 15 Output Current: 2.7 A Output Power (W): 40.5 No. Outputs: S Case: DIN Rail Get a Quote
PSDN-40-12 Input Voltage: 88~264 Output Voltage: 12 Output Current: 3.4 A Output Power (W): 40.8 No. Outputs: S Case: DIN Rail Get a Quote
PSDN-40-24 Input Voltage: 88~264 Output Voltage: 24 Output Current: 1.7 A Output Power (W): 40.8 No. Outputs: S Case: DIN Rail Get a Quote
PSDN-40-48 Input Voltage: 88~264 Output Voltage: 48 Output Current: 850 mA Output Power (W): 40.8 No. Outputs: S Case: DIN Rail Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 88~264
Input Frequency: 47-63 Hz
Output
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±1%
Output Current: 1.7A, 2.7A, 3.4A, 850mA
Output Power (Watts): 40.5, 40.8
Output Trim/Adjustability: ±10%
Over Voltage Protection: 115-150% Latch Off
General
Efficiency: Up to 87%
Isolation: 4242VDC (1 minute)
Environmental
Operating Temperature: -20 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 9.88 oz.

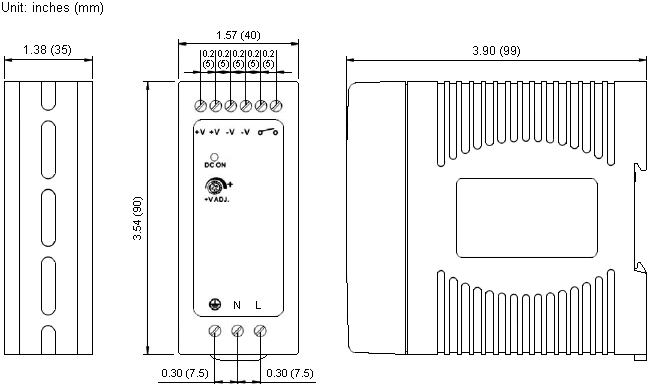

Dimensions: 1.57" x 3.54" x 3.90" (40 x 90 x 99 mm)
Notes & safety
Notes: 1. Ripple & noise is measured at 20MHz bandwidth by using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel.
2. Tolerance includes set up tolerance, line regulation, and load regulation.

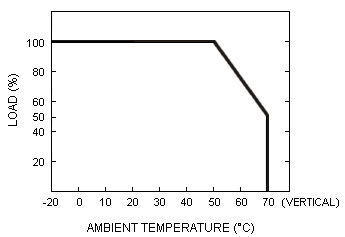

3. Derating may be needed under low input voltages. Please check the derating curve for more details.
4. The power supply is considered a component, which will be installed into final equipment. The final equipment must be
re-confirmed that it still meets EMC directives.
5. In parallel connection only one unit may operate if the total output load is less than 5% of the rated load.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL 508, TUV EN60950-1, UL1310 NEC class 2
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950-1
