PSDN-100

The PSDN-100 series of AC/DC DIN Rail power supplies provides 96 Watts of continuous output power. All models have a single output, active PFC, and a universal input range. All models are over load, over voltage, over temp, and short circuit protected.

● Single Output ● High Operating Temperature up to 70°C ● RoHS Compliant ● UL508 (Industrial Control Equipment) Listed ● True DC OK Relay Contact ● Built-in Active PFC and Over Temp Protection ● Withstand 5G Vibration Test ● High Efficiency, Long Life, and High Reliability ● Universal AC Input 88~264VAC ● All Using 105°C Long Life Electrolytic Capacitors ● Installed on DIN Rail TS35 / 7.5 or 15 ● Short Circuit, Over Load, and Over Voltage Protection ● UL1310 Class 2 Power Unit / LPS Pass
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSDN-100-12 Input Voltage: 88~264 Output Voltage: 12 Output Current: 7.5 A Output Power (W): 90 No. Outputs: S Case: DIN Rail Get a Quote
PSDN-100-15 Input Voltage: 88~264 Output Voltage: 15 Output Current: 6.4 A Output Power (W): 96 No. Outputs: S Case: DIN Rail Get a Quote
PSDN-100-24 Input Voltage: 88~264 Output Voltage: 24 Output Current: 4A Output Power (W): 96 No. Outputs: S Case: DIN Rail Get a Quote
PSDN-100-48 Input Voltage: 88~264 Output Voltage: 48 Output Current: 2A Output Power (W): 96 No. Outputs: S Case: DIN Rail Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 88~264
PFC: Yes
Input Frequency: 47-63 Hz
Output
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±1%
Output Current: 2A, 4A, 6.4A, 7.5A
Output Power (Watts): 90, 96
Output Trim/Adjustability: ±10%
Over Voltage Protection: 115-150% Latch Off
General
Efficiency: Up to 88%
Isolation: 4242VDC (1 minute)
Environmental
Operating Temperature: -20 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 14.11 oz.

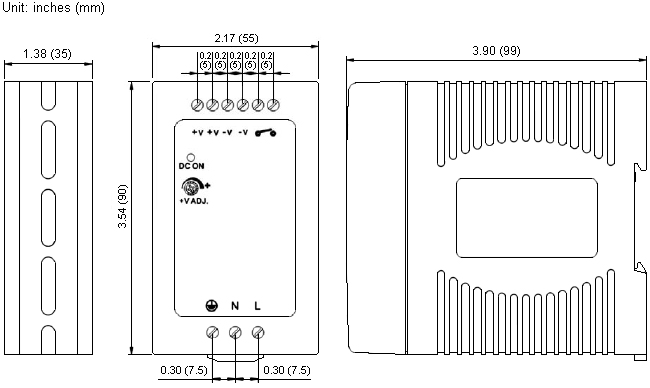

Dimensions: 2.17" x 3.54" x 3.90" (55 x 90 x 99 mm)
Notes & safety
Notes: 1. Ripple & noise is measured at 20MHz bandwidth by using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel.
2. Tolerance includes set up tolerance, line regulation, and load regulation.

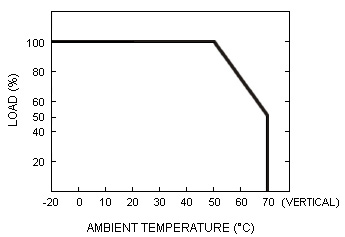

3. Derating may be needed under low input voltages. Please check the derating curve for more details.
4. The power supply is considered a component, which will be installed into final equipment. The final equipment must be
re-confirmed that it still meets EMC directives.
5. In parallel connection only one unit may operate if the total output load is less than 5% of the rated load.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL 508, TUV EN60950-1, UL1310 NEC class 2
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950-1
