PSAZF60

The PSAZF60 series of AC/DC power supplies offers 60 Watts of output power in an encapsulated design. This series has single output models with a universal input range of 85 ~265VAC. Other features include continuous short circuit protection, over voltage protection, and output current limitation. EMS meets EN61000-4 (-2,-3,-4,-5,-6,-8,-11) and EMI meets EN55022 level B conducted noise. The compliance to these EMI specifications minimizes system design time, cost, and eliminates the need for external filter components. The PSAZF-60 series has IEC / EN / UL 60950-1 safety approvals which qualifies this product for worldwide markets. This series has a wide variety of applications including both commercial and industrial with a MTBF of 125,000 hours.

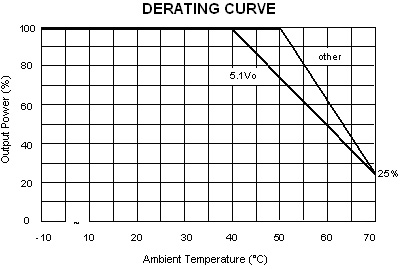

● Single Output ● 3000VAC I/O Isolation ● MTBF > 125,000 Hours ● High Efficiency up to 84% ● EMC Complies with EN61000 ● Meets IEC61140 Safety Class II ● 85~265VAC Universal Input Range ● DIN Rail and Chassis Mounting Options Available ● Operating Temperature to +71°C (Refer to Derating Curve) ● IEC / EN / UL 60950-1 / UL 508 (optional) Safety Standards ● EMI Complies with EN55022 Class B and FCC part 15, level B
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSAZF-60S051 Input Voltage: 85~265 Output Voltage: 5.1 Output Current: 10A Output Power (W): 51 No. Outputs: S Case: PCB Mount Get a Quote
PSAZF-60S051C Input Voltage: 85~265 Output Voltage: 5.1 Output Current: 10A Output Power (W): 51 No. Outputs: S Case: Chassis Mount Get a Quote
PSAZF-60S051DN Input Voltage: 85~265 Output Voltage: 5.1 Output Current: 10A Output Power (W): 51 No. Outputs: S Case: DIN Rail Get a Quote
PSAZF-60S12 Input Voltage: 85~265 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSAZF-60S12C Input Voltage: 85~265 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSAZF-60S15 Input Voltage: 85~265 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSAZF-60S15C Input Voltage: 85~265 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSAZF-60S24 Input Voltage: 85~265 Output Voltage: 24 Output Current: 2.5 A Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSAZF-60S24C Input Voltage: 85~265 Output Voltage: 24 Output Current: 2.5 A Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSAZF-60S36 Input Voltage: 85~265 Output Voltage: 36 Output Current: 1.666 A Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSAZF-60S36C Input Voltage: 85~265 Output Voltage: 36 Output Current: 1.666 A Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSAZF-60S48 Input Voltage: 85~265 Output Voltage: 48 Output Current: 1.25 A Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSAZF-60S48C Input Voltage: 85~265 Output Voltage: 48 Output Current: 1.25 A Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSAZF-60S12DN Input Voltage: 85~265 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
PSAZF-60S15DN Input Voltage: 85~265 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
PSAZF-60S24DN Input Voltage: 85~265 Output Voltage: 24 Output Current: 2.5A Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
PSAZF-60S36DN Input Voltage: 85~265 Output Voltage: 36 Output Current: 1.666A Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
PSAZF-60S48DN Input Voltage: 85~265 Output Voltage: 48 Output Current: 1.25A Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~265
Input Frequency: 47-63 Hz
Output
Output Voltage: 5.1, 12, 15, 24, 36, 48
Voltage Accuracy: ±2.0% max.
Output Current: 1.25A, 1.666A, 2.5A, 4A, 5A, 10A
Output Power (Watts): 51, 60
Short Circuit Protection: hiccup mode, indefinite (auto-recovery)
Over Voltage Protection: 1.2
General
Efficiency: Up to 84%
Isolation: 3000VAC
Environmental
Operating Temperature: -10 to 71°C
Storage Temperature: -40 to 85°C
Physical
Weight: PCB Mount: 12.17oz (345g)
Chassis Mount: 12.6oz (357g)
DIN Rail: 14.46oz (410g)

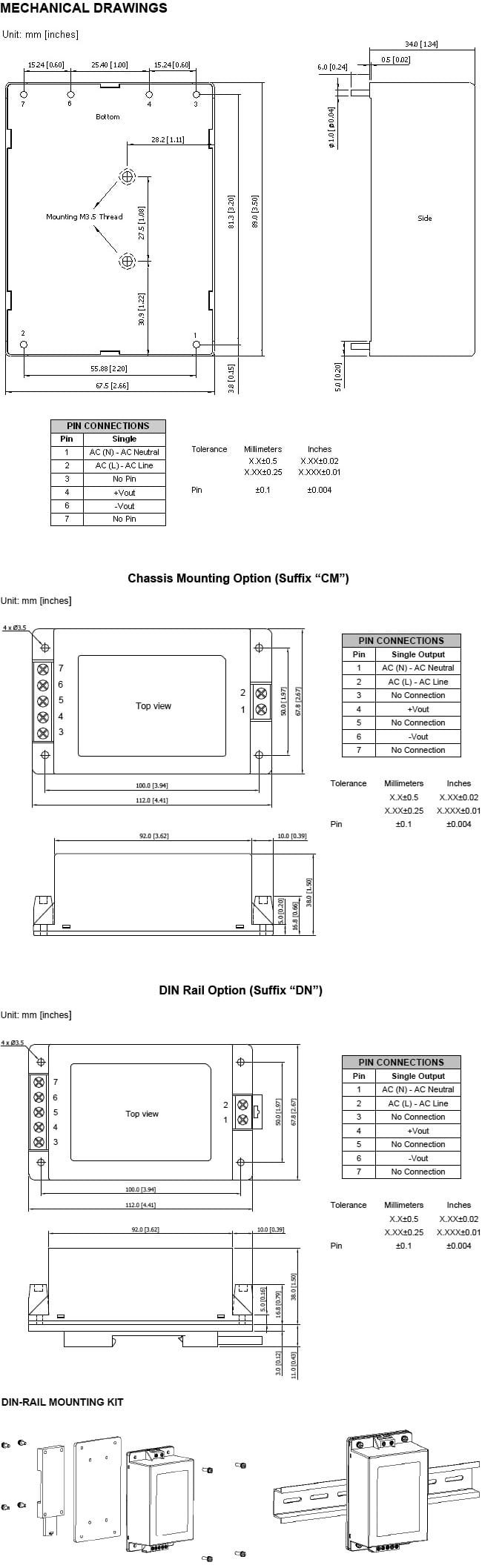

Dimensions: PCB Mount: 3.5" x 2.66" x 1.34" (89 x 67.5 x 34 mm)
Chassis Mount: 4.41" x 2.67" x 1.50" (112 x 67.8 x 38 mm)
DIN Rail: 4.41" x 2.67" x 1.93" (112 x 67.8 x 49 mm)
Notes & safety
Notes: 1. To order the chassis mount version please add the suffix “C” to the model number (Ex: PSAZF-60S12C).
2. To order the DIN rail version please add the suffix “DN” to the model number (Ex: PSAZF-60S12DN).
3. These power modules require a minimum output loading to maintain specified regulation. Operation under no-load
conditions will not damage these devices; however they may not meet all listed specifications.
4. Input Current is measured at 115VAC, 60Hz.
5. Other input and output voltages may be available, please contact factory.
6. Long term short circuit operation may damage the unit.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: CE, UL60950-1, CB
RoHS Compliance: Yes
