PSAQF160

The PSAQF160 series of AC/DC switching power supplies provides 100 Watts of output power with free air convection and 160 watts with 25CFM fan in an ultra compact 4.0” x 2.0” open frame package. This series consists of 12V, 15V, 24V, and 48VDC single output models with a universal input voltage range of 90-264VAC (120~370VDC). Some features include up to 91.5% high efficiency, 0.95 at 230VAC. This series is also protected against short circuit, over power, over voltage, and over temperature conditions. The PSAQF160 series is RoHS compliant and meets EN55022 Class B requirements.

• RoHS Compliant • Isolation Class I • High Efficiency up to 91.5% • 4.0” x 2.0” Open Frame Package • < 0.5W No Load Input Power • Single Outputs • 12V (Aux) / 0.3A • Meets EN55022 Class B • Universal Input Range: 90~264VAC (120~370VDC) • Active PFC Function, PF > 0.95 at 230VAC • 160 Watts Output Power with 25CFM Fan • 100 Watts Output Power with Free Air Convection • -25°C~+70°C Operating Temperature Range • Short Circuit, Over Power, Over Voltage, and Over Temperature Protection • CE, UL60950-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSAQF160-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.6A Output Power (W): 158 No. Outputs: S Case: Open Frame Get a Quote
PSAQF160-24SA Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.6A Output Power (W): 158 No. Outputs: S Case: Open Frame Get a Quote
PSAQF160-15S Input Voltage: 90~264 Output Voltage: 15 Output Current: 10.6A Output Power (W): 159 No. Outputs: S Case: Open Frame Get a Quote
PSAQF160-15SA Input Voltage: 90~264 Output Voltage: 15 Output Current: 10.6A Output Power (W): 159 No. Outputs: S Case: Open Frame Get a Quote
PSAQF160-12S Input Voltage: 90~264 Output Voltage: 12 Output Current: 13.3A Output Power (W): 160 No. Outputs: S Case: Open Frame Get a Quote
PSAQF160-12SA Input Voltage: 90~264 Output Voltage: 12 Output Current: 13.3A Output Power (W): 160 No. Outputs: S Case: Open Frame Get a Quote
PSAQF160-48S Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.33A Output Power (W): 160 No. Outputs: S Case: Open Frame Get a Quote
PSAQF160-48SA Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.33A Output Power (W): 160 No. Outputs: S Case: Open Frame Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: 0.95, 0.98
Input Frequency: 47-63Hz
Output
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±2%
Output Current: 13.3A, 10.6A, 6.6A, 3.33A
Output Power (Watts): 158, 159, 160
Output Trim/Adjustability: ±5%
Short Circuit Protection: Automatic Recovery, Hiccup Mode
Over Voltage Protection: Zener Diode Clamp
Thermal Protection: Automatic Recovery
General
Efficiency: Up to 91.50%
Isolation: 3000VAC
Environmental
Operating Temperature: -25 to 70°C
Storage Temperature: -25 to 85°C
Physical
Weight: 7.76oz (220g)

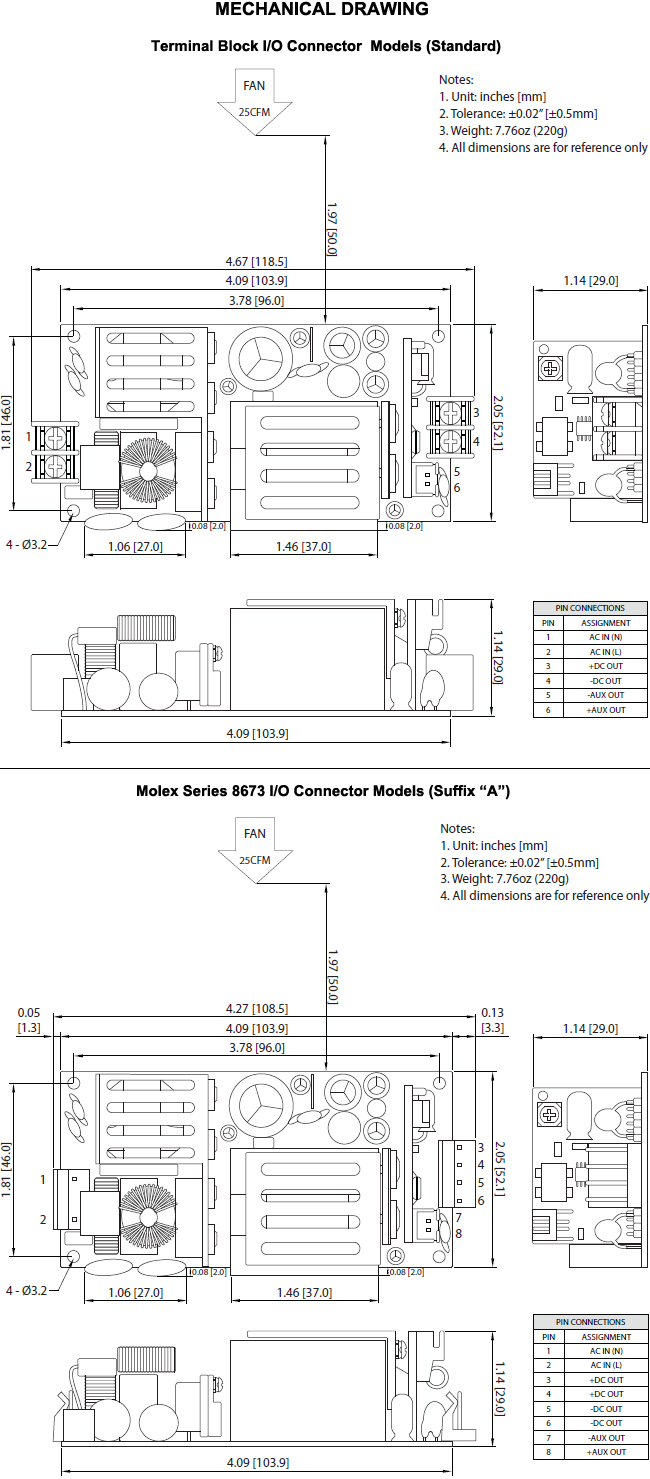

Dimensions: Terminal Block Models: 4.67" x 2.05" x 1.14" (118.5 x 52.1 x 29.0 mm)
Molex 8673 Models: 4.27" x 2.05" x 1.14" (108.5 x 52.1 x 29.0 mm)
Notes & safety
Notes: 1. Terminal block I/O connectors are standard; for Molex series 8673 I/O connectors please add the suffix “A” to the model number (Ex: PSAQF160-12SA).
2. Ripple & Noise are measured at 20MHz bandwidth and with 0.1µF and 47µF capacitors in parallel across the output.

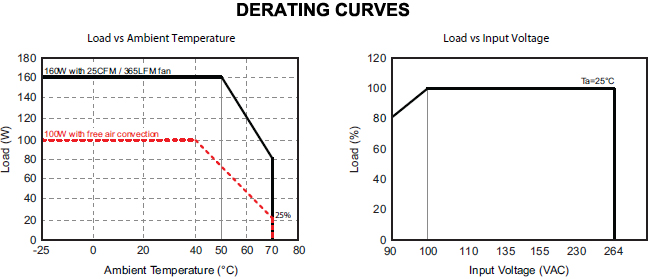

3. Output Power: 100W max. with convection cooling and 160W max. with 25CFM forced air cooling.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: CE, UL60950-1
RoHS Compliance: Yes
