PSAQC125

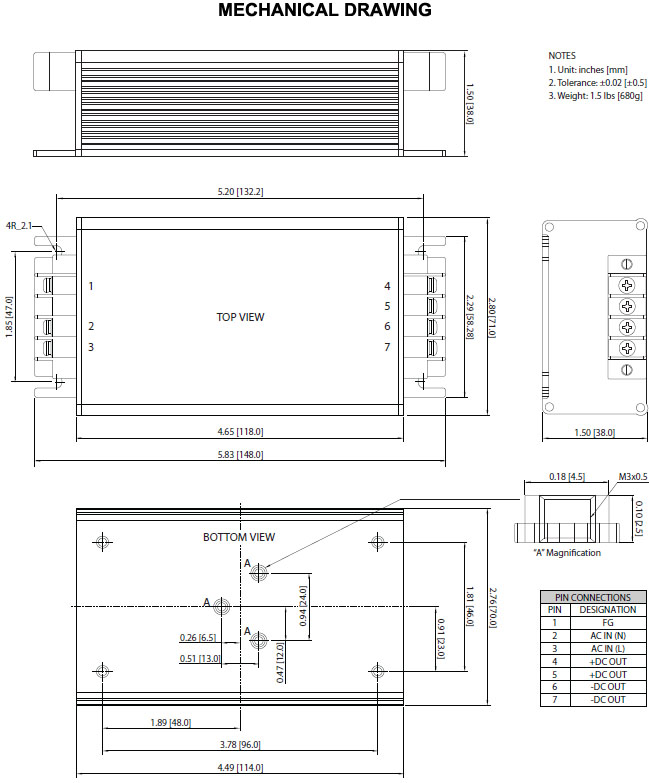

The PSAQC125 series of AC/DC power supplies provides 125 Watts of output power in a 5.83” x 2.80” x 1.50” encapsulated PCB mountable package. This series consists of single output models with a universal input range of 90-264VAC (120-370VDC). Some features include active PFC function, 3000VAC I/O isolation, and high efficiency up to 91.5%. This series is also protected against short circuit, over power, over voltage, and over temperature conditions. All models are RoHS compliant and have UL/cUL 60950-1, CE, and CB safety approvals (pending) and meet EN55022 Class B (pending).

• RoHS Compliant • 3000VAC I/O Isolation • 125 Watts Output Power • High Efficiency up to 91.5% • Free Air Convection • Active PFC Function • Meets EN55022 Class B (pending) • UL/cUL 60950-1, CE, CB Safety Approvals (Pending) • 12V, 15V, 24V, and 48V Single Outputs • PCB Mountable Switching Power Supply • Universal Input: 90-264VAC (120-370VDC) • Short Circuit, Over Power, Over Voltage, and Over Temperature Protection • Four M3 Mounting Holes on Bottom Side (Optional)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSAQC125-12S Input Voltage: 90~264 Output Voltage: 12 Output Current: 10.4A Output Power (W): 125 No. Outputs: S Case: PCB Mount Get a Quote
PSAQC125-15S Input Voltage: 90~264 Output Voltage: 15 Output Current: 8.33A Output Power (W): 125 No. Outputs: S Case: PCB Mount Get a Quote
PSAQC125-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 5.2A Output Power (W): 125 No. Outputs: S Case: PCB Mount Get a Quote
PSAQC125-48S Input Voltage: 90~264 Output Voltage: 48 Output Current: 2.6A Output Power (W): 125 No. Outputs: S Case: PCB Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: 0.98, 0.95
Input Frequency: 47-63Hz
Output
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±2%
Output Current: 10.4A, 8.33A, 5.2A, 2.6A
Output Power (Watts): 125
Short Circuit Protection: hiccup mode, automatic recovery
Over Voltage Protection: Zener Diode Clamp
Thermal Protection: Automatic Recovery
General
Efficiency: Up to 91.50%
Isolation: 3000VAC

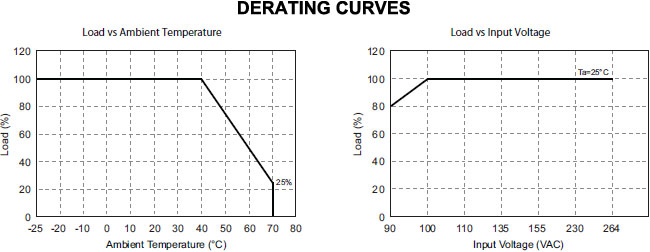

Environmental
Operating Temperature: -25 to 70°C
Storage Temperature: -25 to 85°C
Physical
Weight: 1.5 lbs (680g)
Dimensions: 4.29" x 2.30" x 1.18" (109 x 58.5 x 30 mm)
Notes & safety
Notes: 1. Ripple & Noise is measured at 20MHz limited bandwidth and with 0.1µF and 47µF capacitors in parallel across the output.
2. Optional: four M3 mounting holes on the bottom side of the power supply. For ordering details please call factory.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, CE, CB (pending)
RoHS Compliance: Yes
