PSAPD65

The PSAPD65 series of AC/DC converters offers up to 65 watts of output power in a 3” x 2” high power density open frame package. This series consists of single output models with a universal input range of 85-264VAC (100-370VDC). Each model in this series features high efficiency, high reliability, and low ripple and noise. They are also protected against short circuit, over current, and over voltage conditions and are RoHS compliant. The PSAPD65 series has IEC62368, UL62368, and EN62368 safety approvals and EMI performance meets CISPR32/EN55032 class B.

• Universal Input Range of 85~264VAC (100~370VDC) • 3 x 2 Inch High Power Density • High Efficiency • High Reliability • Regulated Output • RoHS Compliant • Low Ripple & Noise • Output Short Circuit, Over Current, and Over Voltage Protection • EMI Performance Meets CISPR32/EN55032 Class B • IEC62368, UL62368, and EN62368 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSAPD65-05S Input Voltage: 85~264 Output Voltage: 5 Output Current: 10000mA Output Power (W): 50 No. Outputs: S Case: Open Frame Size: 3" x 1" x 1.18" Get a Quote
PSAPD65-09S Input Voltage: 85~264 Output Voltage: 9 Output Current: 6600mA Output Power (W): 60 No. Outputs: S Case: Open Frame Size: 3" x 2" x 1.18" Get a Quote
PSAPD65-12S Input Voltage: 85~264 Output Voltage: 12 Output Current: 5420mA Output Power (W): 65 No. Outputs: S Case: Open Frame Size: 3" x 2" x 1.18" Get a Quote
PSAPD65-15S Input Voltage: 85~264 Output Voltage: 15 Output Current: 4340mA Output Power (W): 65 No. Outputs: S Case: Open Frame Size: 3" x 2" x 1.18" Get a Quote
PSAPD65-24S Input Voltage: 85~264 Output Voltage: 24 Output Current: 2710mA Output Power (W): 65 No. Outputs: S Case: Open Frame Size: 3" x 2" x 1.18" Get a Quote
PSAPD65-48S Input Voltage: 85~264 Output Voltage: 48 Output Current: 1360mA Output Power (W): 65 No. Outputs: S Case: Open Frame Size: 3" x 1" x 1.18" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85-264
Input Frequency: 47 to 63Hz
Output
Output Voltage: 5, 9, 12, 15, 24, 48
Voltage Accuracy: ±2
Output Current: 1360mA, 2710mA, 4340mA, 5420mA, 6600mA, 10000mA
Output Power (Watts): 50, 60, 65
Short Circuit Protection: Hiccup, Continuous, Self-Recovery
Over Voltage Protection: Yes
General
Isolation: 3000VAC
Environmental
Operating Temperature: -25 - 70°C
Storage Temperature: -25 to 85°C
Physical
Weight: 3.35oz (95g)

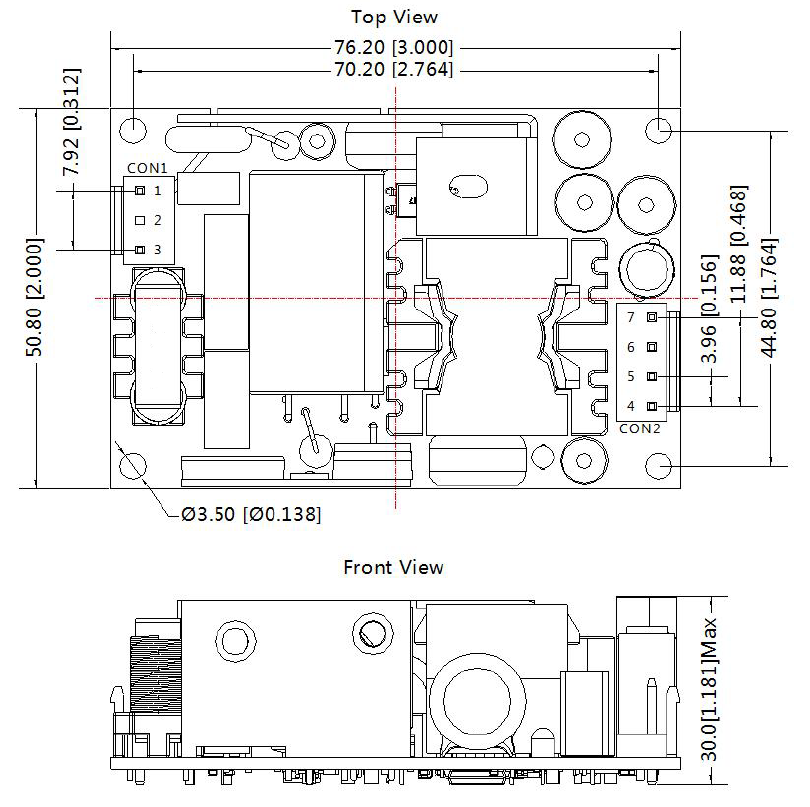

Dimensions: 3" x 2" x 1.18" (76.20mm x 50.80mm x 30mm)
Notes & safety
Notes: 1. The “parallel cable” method is used to test Ripple and Noise. Contact factory for more information.
2. This product is listed to applicable standards and requirements by UL.
3. There will be noise generated when product is working at light load, but it will not affect performance and reliability.
4. This product is classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units.
5. Customization service is available. Contact factory for more information.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/EN/IEC62368
RoHS Compliance: Yes
