PSABR300

The PSABR300 series of AC/DC power supplies offers 300 watts of output power in a 4.62” x 2.42” x 0.52” full brick package. This series consists of single output models with a universal input range of 90~264VAC. Each model in this series has high efficiency, over current, short circuit, over temperature, and over voltage protection, as well as remote sense. This series has EN60950-1 and UL60950-1 safety approvals.

• Universal Input of 90~264VAC • Switching Power Module for PCB Mountable • Full Brick Size with Base Plate • Remote Sense • Conduction Cooling • Over Current, Short Circuit, Over Temperature and Over Voltage Protection • High Efficiency • EN60950-1 and UL60950-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSABR300-12S Input Voltage: 90~264 Output Voltage: 12 Output Current: 25A Output Power (W): 300 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSABR300-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 12.5A Output Power (W): 300 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSABR300-28S Input Voltage: 90~264 Output Voltage: 28 Output Current: 11A Output Power (W): 300 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
PSABR300-48S Input Voltage: 90~264 Output Voltage: 48 Output Current: 6.25A Output Power (W): 300 No. Outputs: S Case: Through Hole, PCB Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 100/200
Input Voltage Range: 90~264
PFC: 100VAC, Full Load: >0.95
200VAC, Full Load: >0.9
Input Frequency: 47~63Hz
Output
Output Voltage: 12, 24, 28, 48
Voltage Accuracy: ±2%
Output Current: 25A, 12.5A, 11A, 6.25A
Output Power (Watts): 300
Short Circuit Protection: Automatic Recovery, Hiccup Mode
Over Voltage Protection: Automatic Recovery
Thermal Protection: Automatic Recovery
General
Efficiency: Up to 91%
Isolation: Input to Output: 3000VAC
Input to FG: 2000VAC
Output to FG: 500VAC
Environmental
Operating Temperature: -40 to 100ºC
Storage Temperature: -40 to 100ºC
Physical
Weight: 3.92oz (111g)

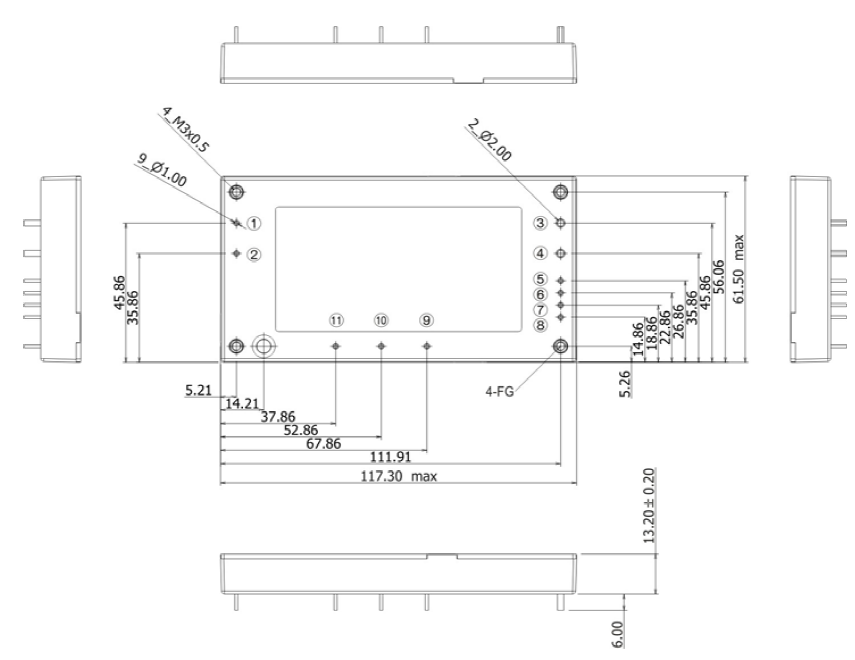

Dimensions: 4.62in x 2.42in x 0.52in (117.3mm x 61.5mm x 13.2mm)
Notes & safety
Notes: 1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN60950-1, UL60950-1
