DTIPU45E

The DTIPU45E series of class I AC DC desktop switching power supplies provides up to 50 Watts of continuous output power in a 5.75” x 2.99” x 1.69” package. This series consists of single, dual, and triple output models with a 90~264VAC input voltage range and an IEC-320-C14 input inlet connector. These power supplies have an industrial operating temperature range of -20°C to +70°C and are protected against input surge current, over voltage, and over load conditions. All units are UL 94V-1 and RoHS compliant and meet FCC Part-15 class B and CISPR-22 class B emission limits. The DTIPU45E series also meets new CE requirements and has UL/cUL (UL 60950-1: 2nd edition) and TUV/GS (EN 60950-1: 2nd edition) safety approvals. All units are 100% burn-in tested.

• “Economy” Version of our DTIPU45 Series • Class I • RoHS Compliant • UL 94V-1 Compliant • Splash Proof • IEC-320-C14 AC Input Inlet Connector • 100% Burn-in Tested • Single, Dual, and Triple Outputs • Output Voltages Available from 3 to 50VDC • Wide Input Voltage Range: 90~264VAC • Input Surge Current, Over Voltage, and Over Load Protection • Over Voltage Protection (Crowbar Design) • -20°C to +70°C Operating Temperature Range • Meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits • UL/cUL (UL60950-1: 2nd Edition) and TUV/GS (EN 60950-1: 2nd Edition) Safety Approvals • Optional Output Connectors Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTIPU45E-216 Input Voltage: 90~264 Output Voltage: 5.1, 7.2 Output Current: 1A, 2.6A Output Power (W): 23.82 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-204 Input Voltage: 90~264 Output Voltage: 3.3, 5 Output Current: 5A, 2A Output Power (W): 26.5 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-101 Input Voltage: 90~264 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-102 Input Voltage: 90~264 Output Voltage: 6 Output Current: 6.66 A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-200 Input Voltage: 90~264 Output Voltage: 3.3, 12 Output Current: 5A, 2A Output Power (W): 40 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-103 Input Voltage: 90~264 Output Voltage: 8 Output Current: 5.25 A Output Power (W): 42 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-201 Input Voltage: 90~264 Output Voltage: 5, 12 Output Current: 5A, 2A Output Power (W): 42 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-202 Input Voltage: 90~264 Output Voltage: 5, 15 Output Current: 5A, 2A Output Power (W): 42 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-203 Input Voltage: 90~264 Output Voltage: 5, 24 Output Current: 5A, 1A Output Power (W): 42 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-209 Input Voltage: 90~264 Output Voltage: 12, -12 Output Current: 3A, 1A Output Power (W): 42 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-210 Input Voltage: 90~264 Output Voltage: 15, -15 Output Current: 2A, 1A Output Power (W): 42 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-215 Input Voltage: 90~264 Output Voltage: 5, -24 Output Current: 5A, 1A Output Power (W): 42 No. Outputs: D Case: Desktop Get a Quote
DTIPU45E-300 Input Voltage: 90~264 Output Voltage: 3.3, 12, -12 Output Current: 5A, 2A, 0.8A Output Power (W): 42 No. Outputs: T Case: Desktop Get a Quote
DTIPU45E-301 Input Voltage: 90~264 Output Voltage: 5, 12, -5 Output Current: 5A, 2A, 0.8A Output Power (W): 42 No. Outputs: T Case: Desktop Get a Quote
DTIPU45E-302 Input Voltage: 90~264 Output Voltage: 5, 12, -12 Output Current: 5A, 2A, 0.8A Output Power (W): 42 No. Outputs: T Case: Desktop Get a Quote
DTIPU45E-303 Input Voltage: 90~264 Output Voltage: 5, 15, -15 Output Current: 5A, 2A, 0.5A Output Power (W): 42 No. Outputs: T Case: Desktop Get a Quote
DTIPU45E-304 Input Voltage: 90~264 Output Voltage: 5, 24, -24 Output Current: 5A, 1A, 0.5A Output Power (W): 42 No. Outputs: T Case: Desktop Get a Quote
DTIPU45E-305 Input Voltage: 90~264 Output Voltage: 5, 24, -12 Output Current: 5A, 1A, 0.8A Output Power (W): 42 No. Outputs: T Case: Desktop Get a Quote
DTIPU45E-306 Input Voltage: 90~264 Output Voltage: 3.3, 12, -5 Output Current: 5A, 2A, 0.8A Output Power (W): 42 No. Outputs: T Case: Desktop Get a Quote
DTIPU45E-104 Input Voltage: 90~264 Output Voltage: 11 Output Current: 5.63~4A Output Power (W): 45 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-105 Input Voltage: 90~264 Output Voltage: 13 Output Current: 3.46 A Output Power (W): 45 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-106 Input Voltage: 90~264 Output Voltage: 16 Output Current: 2.81 A Output Power (W): 45 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-107 Input Voltage: 90~264 Output Voltage: 21 Output Current: 2.38 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-108 Input Voltage: 90~264 Output Voltage: 27 Output Current: 1.85 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-109 Input Voltage: 90~264 Output Voltage: 33 Output Current: 1.51 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-110 Input Voltage: 90~264 Output Voltage: 40 Output Current: 1.25 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTIPU45E-111 Input Voltage: 90~264 Output Voltage: 50 Output Current: 1.25~1.00A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63 Hz
Output
Output Voltage: 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 3.3, 5, -5, 5.1, 7.2, 12, -12, 15, -15, 24, -24
Output Current: 3A, 3.6A, 4A, 6A, 6.5A, 6.8A, 7A, 7.8A, 8A, 1.25~1.00A, 1.51~1.25A, 1.85~1.51A, 2.3~1.85A, 3.12~2.38A, 3.46A~2.81A, 4~3.46A, 5.63~4A, 7~5.25A, 8~6.66A
Output Power (Watts): 23.82, 26.5, 40, 42, 45, 50
Over Voltage Protection: 112~132%
General
Efficiency: Up to 80%
Isolation: 4242VDC
Environmental
Operating Temperature: 20 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 1.23 lb.

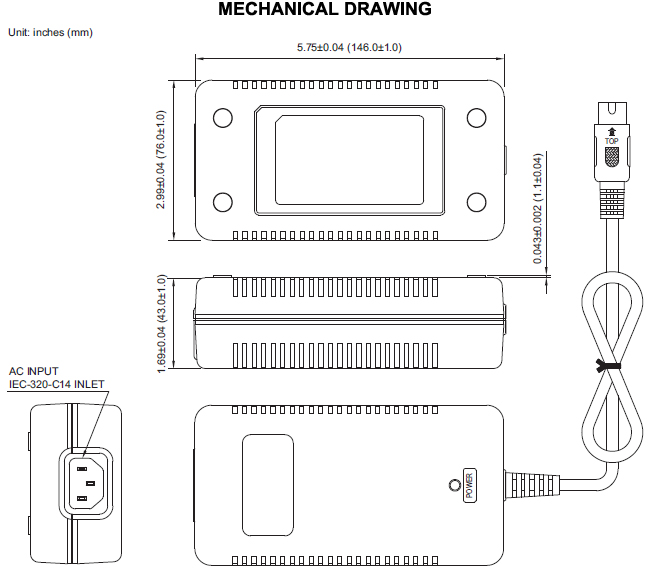

Dimensions: 5.75" x 2.99" x 1.69" (146 x 76 x 43 mm)
Notes & safety
Notes: 1. The “*” next to the model number means PSE Approval.
2. For single output models the output voltage is specified as a range (ex: 40~50VDC); the customer must specify what they would like the output voltage set at.
3. Optional output connectors available. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL (UL60950-1: 2nd Edition), TUV/GS (EN 60950-1: 2nd Edition)
RoHS Compliance: Yes
TUV Efficiency Level: TUV/GS EN60950-1: 2nd Edition
