DTEM1090

The DTEM1090 series of medical AC/DC desktop power supplies provides up to 100 Watts of continuous output power in a 5.96” x 2.31” x 1.35” package. This series consists of single output models with a wide input voltage range of 100~240VAC. The DTEM1090 series is RoHS and CEC/Energy Star Level V compliant and has EN/IEC 60601 and UL60601, 3rd edition medical approvals. These models are also protected against over voltage and short circuit conditions. This series has three AC inlet connector types available: IEC-320-C14, IEC-320-C8, and IEC-320-C6. Please call factory for ordering details.

• Single Outputs • CEC/Energy Star Level V Compliant • RoHS Compliant • Short Circuit and Over Voltage Protection • MTBF: > 30,000 Hours • 100~240VAC Input Voltage Range • C14, C8, and C6 AC Inlet Connectors Available • Optional Output Connectors Available • Dimensions: 5.96” x 2.31” x 1.35” • EN/IEC 60601 and UL60601, 3rd Edition Medical Approvals
Part Number Setup:
X: “1” for IEC-320-C14 AC Inlet, “2” for IEC-320-C8 AC Inlet, and “3” for IEC-320-C6 AC Inlet
Example:
DTEM10902E = 12~17VDC Output with IEC-320-C8 AC Inlet
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTEM1090xE Input Voltage: 100~240 Output Voltage: 12~17 Output Current: 5.83A Output Power (W): 70 No. Outputs: S Case: Desktop Size: 5.96" x 2.31" x 1.35" Get a Quote
DTEM1090xC Input Voltage: 100~240 Output Voltage: 12~17 Output Current: 6.67A Output Power (W): 80 No. Outputs: S Case: Desktop Size: 5.96" x 2.31" x 1.35" Get a Quote
DTEM1090xF Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.44A Output Power (W): 80 No. Outputs: S Case: Desktop Size: 5.96" x 2.31" x 1.35" Get a Quote
DTEM1090xA Input Voltage: 100~240 Output Voltage: 12~17 Output Current: 7.5A Output Power (W): 90 No. Outputs: S Case: Desktop Size: 5.96" x 2.31" x 1.35" Get a Quote
DTEM1090xD Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 5.0A Output Power (W): 90 No. Outputs: S Case: Desktop Size: 5.96" x 2.31" x 1.35" Get a Quote
DTEM1090xB Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 5.56A Output Power (W): 100 No. Outputs: S Case: Desktop Size: 5.96" x 2.31" x 1.35" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50/60Hz
Output
Output Voltage: 12~17, 18~24
Output Current: 5.56A, 4.44A, 5A, 6.67A, 7.5A, 5.83A
Output Power (Watts): 70, 80, 90, 100
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery
General
Efficiency: 82%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
Physical
Weight: 1.2 lbs

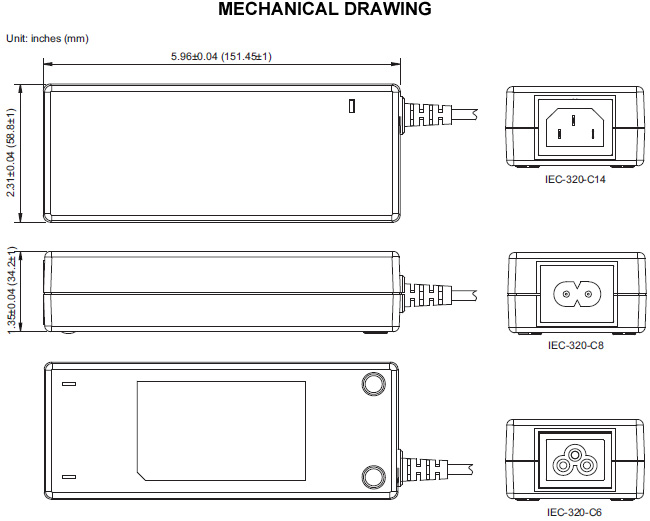

Dimensions: 5.96" x 2.31" x 1.35" (151.45 x 58.8 x 34.2 mm)
Notes & safety
Notes: 1. The number in red represents the type of AC inlet connector: “1” for IEC-320-C14 type, “2” for IEC-320-C8 type, and “3” for
IEC-320-C6 type.
2. The output voltage is specified as a range (Ex: 18~24VDC); the customer must specify what they want the voltage set at.
3. Ripple and Noise is measured at nominal line and full load with 20MHz limited bandwidth and a 0.1µF ceramic and 47µF aluminum capacitors in parallel on the output.
4. Optional output connectors are available. Please call factory for ordering details.
5. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN/IEC 60601, UL60601, 3rd Edition Medical Approvals
RoHS Compliance: Yes
Energy Star Compliance: Level V
