DTEM1060

The DTEM1060 series of medical AC DC desktop power supplies provides up to 55 Watts of continuous output power in a 4.72” x 2.36” x 1.37” package. This series consists of single output models with a wide input voltage range of 100~240VAC. These models are protected against over voltage and short circuit conditions and are RoHS, WEEE, and CEC/Energy Star Level V compliant. This series also has UL/cUL UL60601-1 (3rd ed.), TUV/RH EN/IEC 60601-1 (3rd ed.), CB, CE, and FCC safety approvals. The DTEM1060 series has two AC inlet connector types available: IEC-320-C14 and IEC-320-C8. Please call factory for ordering details.

• Single Outputs • CEC/Energy Star Level V Compliant • RoHS & WEEE Compliant • Short Circuit and Over Voltage Protection • MTBF: > 30,000 Hours • 100~240VAC Input Voltage Range • C14, and C8 AC Inlet Connectors Available • Optional Output Connectors Available • UL/cUL UL60601-1 (3rd Edition), TUV/RH EN/IEC 60601-1 (3rd Edition), CB, CE, and FCC Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTEM10601E Input Voltage: 90~264 Output Voltage: 12~17 Output Current: 3.5 A Output Power (W): 42 No. Outputs: S Case: Desktop Get a Quote
DTEM10601F Input Voltage: 90~264 Output Voltage: 18~24 Output Current: 2.3 A Output Power (W): 42 No. Outputs: S Case: Desktop Get a Quote
DTEM10602E Input Voltage: 90~264 Output Voltage: 12~17 Output Current: 3.5A Output Power (W): 42 No. Outputs: S Case: Desktop Get a Quote
DTEM10602F Input Voltage: 90~264 Output Voltage: 18~24 Output Current: 2.3A Output Power (W): 42 No. Outputs: S Case: Desktop Get a Quote
DTEM10601C Input Voltage: 90~264 Output Voltage: 12~17 Output Current: 4.2 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTEM10601D Input Voltage: 90~264 Output Voltage: 18~24 Output Current: 2.8 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTEM10602C Input Voltage: 90~264 Output Voltage: 12~17 Output Current: 4.2A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTEM10602D Input Voltage: 90~264 Output Voltage: 18~24 Output Current: 2.8A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTEM10601A Input Voltage: 90~264 Output Voltage: 13~17 Output Current: 4.2 A Output Power (W): 55 No. Outputs: S Case: Desktop Get a Quote
DTEM10601B Input Voltage: 90~264 Output Voltage: 18~24 Output Current: 3A Output Power (W): 55 No. Outputs: S Case: Desktop Get a Quote
DTEM10602A Input Voltage: 90~264 Output Voltage: 13~17 Output Current: 4.2A Output Power (W): 55 No. Outputs: S Case: Desktop Get a Quote
DTEM10602B Input Voltage: 90~264 Output Voltage: 18~24 Output Current: 3A Output Power (W): 55 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63 Hz
Output
Output Voltage: 12~17, 13~17, 18~24
Output Current: 2.3A, 2.8A, 3A, 3.5A, 4.2A
Output Power (Watts): 42, 50, 55
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery
General
Efficiency: 85%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
Physical
Weight: 9.88 oz.

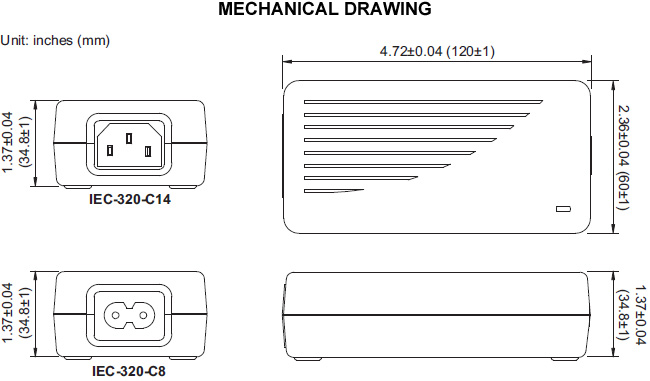

Dimensions: 4.72in. × 2.36in. × 1.37in.
Notes & safety
Notes: 1. The number in red represents the type of AC inlet connector: “1” for IEC-320-C14 type and “2” for IEC-320-C8 type.
2. The output voltage is specified as a range (Ex: 18~24VDC); the customer must specify what they want the voltage set at.
3. Ripple and Noise is measured at nominal line and full load with 20MHz limited bandwidth and a 0.1µF ceramic and 47µF aluminum capacitors in parallel on the output.
4. Optional output connectors are available. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/CUL UL60601-1 (3rd ed.), TUV/RH EN/IEC 60601-1 (3rd ed.), CB, CE, FCC
RoHS Compliance: Yes
TUV Efficiency Level: TUV/RH EN/IEC60601-1: 3rd Edition
Energy Star Compliance: Level V
