DTBA40W

The DTBA040 series of AC/DC desktop power supplies provides 40 watts of continuous output power. The series consists of models with a 100~240VAC input voltage range. Each unit is protected against over current and short circuit conditions. All units are RoHS and Level VI Efficiency compliant and meet UL, CB, CCC, PSE, KC safety approvals.

• Universal Input Range of 90~264VAC • Output Voltages Ranging from 11.6~27V • Over Current and Short Circuit Protection • MTBF ≥ 30,000 Hrs • AC Inlet: C6 • Level VI and RoHS Compliant • UL, CB, CCC, PSE, and KC Safety Approvals • High Efficiency
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTBA040116 Input Voltage: 100~240 Output Voltage: 11.6~15.5 Output Current: 3.45A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTBA040155 Input Voltage: 100~240 Output Voltage: 11.6~15.5 Output Current: 3.45A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTBA040156 Input Voltage: 100~240 Output Voltage: 15.6~20.5 Output Current: 2.56A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTBA040205 Input Voltage: 100~240 Output Voltage: 15.6~20.5 Output Current: 2.56A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTBA040206 Input Voltage: 100~240 Output Voltage: 20.6~27 Output Current: 1.94A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
DTBA040270 Input Voltage: 100~240 Output Voltage: 20.6~27 Output Current: 1.94A Output Power (W): 40 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50/60Hz
Output
Output Voltage: 11.6~15.5, 15.6~20.5, 20.6~27
Output Current: 3.45A, 2.56A, 1.94A
Output Power (Watts): 40
Short Circuit Protection: Automatic Recovery
General
Efficiency: 88%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
Physical
Weight: 4.94oz (140g)

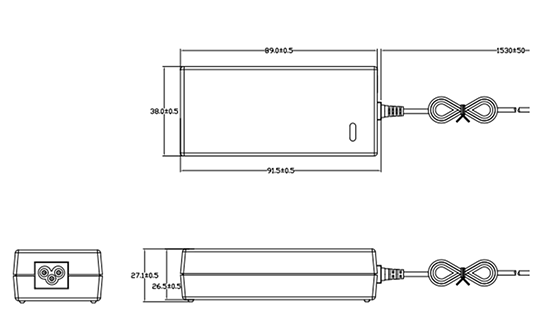

Dimensions: 3.5" x 1.50" x 1.07"
Notes & safety
Notes: Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL, CB, CCC, PSE, KC
RoHS Compliance: Yes
Energy Star Compliance: Level VI
