DTAPU20
The DTAPU20 series of AC/DC desktop power supplies provides up to 20 Watts of continuous output power. This series consists of single output models ranging from 5VDC to 50VDC with a 90~264VAC input voltage range. Some features include high efficiency up to 85%, -40°C to +70°C operating temperature range, and no load power consumption < 0.3W. All units are UL 94V-1, RoHS, and CEC & Energy Star Level V compliant. This series also meets FCC Part-15 class B and CISPR-22 class B emission limits. All models meet new CE requirements and have UL/cUL (UL 60950-1: 2nd edition) and TUV/GS (EN 60950-1: 2nd edition) safety approvals. The DTAPU20 series has three types of AC inlets available: IEC-320-C14 (Type “A”), IEC-320-C8 (Type “B”), and IEC-320-C6 (Type “C”). All units have been 100% burn-in tested.
• RoHS Compliant
• Class I (A & C Types); Class II (B Type)
• Up to 20 Watts Output Power
• Up to 85% High Efficiency
• Energy Star 2.0, Efficiency Level V
• 90-264VAC Input Voltage Range
• < 0.3W No Load Power Consumption
• 100% Burn-In Tested
• -40°C to +70°C Operating Temperature Range
• Single Outputs Ranging from 5VDC to 50VDC
• Approved as Limited Power Source (LPS)
• IEC-320-C14, C8, & C6 AC Inlet Connectors Available
• Meets FCC Part-15 Class B & CISPR-22 Class B Emission Limits
• UL/cUL (UL 60950-1: 2nd ed.) & TUV/GS (EN 60950-1: 2nd ed.) Safety Approvals
• Optional Output Connectors Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

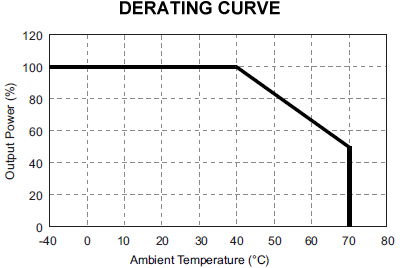

Case | |
|---|---|---|---|---|---|---|---|
| DTAPU20B-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 3~2.5A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 3~2.5A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 3~2.5A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 2.5~1.87A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 2.5~1.87A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 2.5~1.87A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 2.5~1.81A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 2.5~1.81A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 2.5~1.81A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.81~1.53A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.81~1.53A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.81~1.53A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.53~1.25A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.53~1.25A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 1.53~1.25A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 1.25~0.95A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 1.25~0.95A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 1.25~0.95A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.95~0.74A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.95~0.74A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.95~0.74A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.74~0.6A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.74~0.6A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.74~0.6A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.6~0.5A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.6~0.5A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.6~0.5A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20B-111 | Input Voltage: 90~264 | Output Voltage: 40~50 | Output Current: 0.5~0.4A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20C-111 | Input Voltage: 90~264 | Output Voltage: 40~50 | Output Current: 0.5~0.4A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| DTAPU20A-111 | Input Voltage: 90~264 | Output Voltage: 40~50 | Output Current: 0.5~0.4A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50 |
| Output Current: | 3~2.5A, 2.5~1.87A, 1.81~1.53A, 1.53~1.25A, 1.25~0.95A, 0.95~0.74A, 0.74~0.6A, 0.6~0.5A, 0.5~0.4A |
| Output Power (Watts): | 15, 20 |
| General | |
| Efficiency: | 76-85% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 6 oz. |

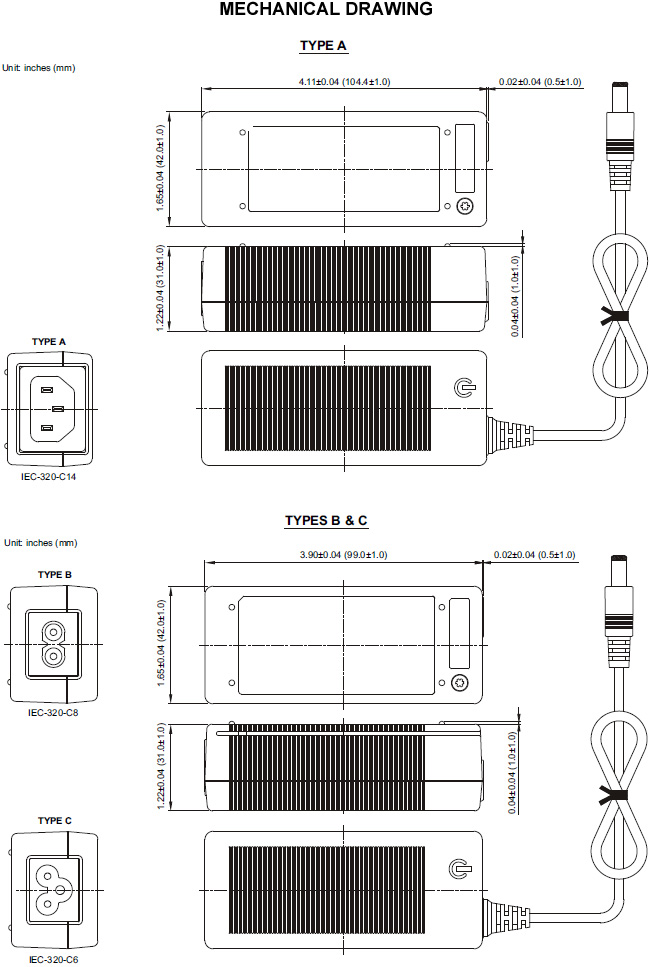

| Dimensions: | A Type: 4.11" x 1.65" x 1.22" (104.4 x 42.0 x 31.0 mm) B & C Types: 3.90" x 1.65" x 1.22" (99.0 x 42.0 x 31.0 mm) |
| Notes & safety | |
| Notes: | 1. The “x” in the model represents the type of AC inlet connector: “A” for IEC-320-C14 type, “B” for IEC-320-C8 type, or “C” for IEC-320-C6 type. 2. The output voltage is specified as a range (ex: 33~40VDC); the customer must specify what they would like the output voltage set at. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL (UL60950-1: 2nd edition.), TUV/GS (EN60950-1: 2nd edition), CE |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN 60950-1: 2nd edition) |
| Energy Star Compliance: | Level V |
