DTA150A-E

The DTA150A-E series are highly reliable desktop power supplies with an input voltage range of 90~264VAC. All supplies have a single output, active PFC, 40mm cooling fan, and an IEC-320-C14 AC inlet connector. These supplies also have over voltage, over load, and short circuit protection. This series has been 100% burn-in and hi-pot tested.

● Single Output ● High Reliability ● RoHS Compliant ● 40mm Cooling Fan ● Input: 90~264 VAC ● AC Input: IEC-320-C14 Inlet ● Total Power: 110~150 Watts ● 100% Hi-pot and Burn-in Tested ● Safety Approvals, EMC Compliance ● Over Voltage, Over Load, and Short Circuit Protected
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTA-110A2-1Y-050E Input Voltage: 90~264 Output Voltage: 5 Output Current: 22 A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTA-110A2-1Y-060E Input Voltage: 90~264 Output Voltage: 6 Output Current: 18.3 A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTA-110A2-1Y-070E Input Voltage: 90~264 Output Voltage: 7 Output Current: 15.7 A Output Power (W): 110 No. Outputs: S Case: Desktop Get a Quote
DTA-130A2-1Y-080E Input Voltage: 90~264 Output Voltage: 8 Output Current: 16.3 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTA-130A2-1Y-090E Input Voltage: 90~264 Output Voltage: 9 Output Current: 14.4 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTA-130A2-1Y-100E Input Voltage: 90~264 Output Voltage: 10 Output Current: 13 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTA-130A2-1Y-110E Input Voltage: 90~264 Output Voltage: 11 Output Current: 11.8 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-120E Input Voltage: 90~264 Output Voltage: 12 Output Current: 12.5 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-130E Input Voltage: 90~264 Output Voltage: 13 Output Current: 11.5 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-140E Input Voltage: 90~264 Output Voltage: 14 Output Current: 10.7 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-150E Input Voltage: 90~264 Output Voltage: 15 Output Current: 10A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-160E Input Voltage: 90~264 Output Voltage: 16 Output Current: 9.4 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-170E Input Voltage: 90~264 Output Voltage: 17 Output Current: 8.8 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-180E Input Voltage: 90~264 Output Voltage: 18 Output Current: 8.3 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-190E Input Voltage: 90~264 Output Voltage: 19 Output Current: 7.9 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-200E Input Voltage: 90~264 Output Voltage: 20 Output Current: 7.5 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-210E Input Voltage: 90~264 Output Voltage: 21 Output Current: 7.1 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-220E Input Voltage: 90~264 Output Voltage: 22 Output Current: 6.8 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-230E Input Voltage: 90~264 Output Voltage: 23 Output Current: 6.5 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-240E Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.3 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-320E Input Voltage: 90~264 Output Voltage: 32 Output Current: 4.7 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-330E Input Voltage: 90~264 Output Voltage: 33 Output Current: 4.5 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-360E Input Voltage: 90~264 Output Voltage: 36 Output Current: 4.2 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
DTA-150A2-1Y-480E Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.1 A Output Power (W): 150 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 120
Input Voltage Range: 90~264
PFC: Yes
Input Frequency: 47-63 Hz
Output
Output Voltage: 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 32, 33, 36, 48
Output Current: 22A, 18.3A, 15.7A, 16.3A, 14.4A, 13A, 11.8A, 12.5A, 11.5A, 10.7A, 10A, 9.4A, 8.8A, 8.3A, 7.9A, 7.5A, 7.1A, 6.8A, 6.5A, 6.3A, 4.7A, 4.5A, 4.2A, 3.1A
Output Power (Watts): 110, 130, 150
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery
General
Efficiency: 80%
Environmental
Operating Temperature: 0 to 50°C
Storage Temperature: -10 to 70°C
Physical
Weight: 12 oz.

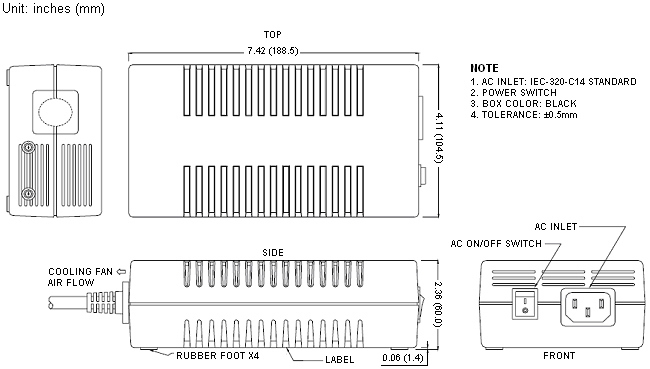

Dimensions: 7.42" x 4.11" x 2.36" (188.5 x 104.5 x 60 mm)
Notes & safety
Notes: 1. AC Inlet: IEC-320-C14 Standard.
2. The unit has an AC ON/OFF power switch.
3. Ripple & Noise is measured peak-to-peak with 20MHz bandwidth with a tantalum 10uF in parallel with a 0.1uF ceramic capacitor.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL 60950-1, CSA C22.2-No.60950-1, TUV EN60950-1, CB IEC 60950-1
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950-1
