DTA-150AD-A5

The DTA-150AD-A5 Series is a multiple output highly reliable desktop power supply. This power supply offers active PFC and has been 100% burn-in and hi-pot tested. It also has safety approval and EMC compliance.

● High Reliability ● Multiple Outputs ● With Active PFC ● RoHS Compliant ● 40mm Cooling Fan ● Input: 90~264 VAC ● 100% Hi-Pot Tested ● 100% Burn-In Tested ● Total Power: 150 Watts ● AC Input: IEC 320-C14 Inlet ● Safety Approvals, EMC Compliance ● Over Voltage and Short Circuit Protected ● Dimensions: 188.5(L) x 104.5(W) x 60(H) mm
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTA-150A2-2Y-A01E Input Voltage: 90~264 Output Voltage: 5, 19 Output Current: 15A, 5A Output Power (W): 150 No. Outputs: D Case: Desktop Get a Quote
DTA-150A2-2Y-B01E Input Voltage: 90~264 Output Voltage: 5, 12 Output Current: 15A, 8A Output Power (W): 150 No. Outputs: D Case: Desktop Get a Quote
DTA-150A2-2Y-C01E Input Voltage: 90~264 Output Voltage: 12, -12 Output Current: 12A, 1.5A Output Power (W): 150 No. Outputs: D Case: Desktop Get a Quote
DTA-150A2-3Y-A01E Input Voltage: 90~264 Output Voltage: 5, 12, -12 Output Current: 15A, 8A, 1.5A Output Power (W): 150 No. Outputs: T Case: Desktop Get a Quote
DTA-150A2-4Y-A01E Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, -12 Output Current: 6A, 7A, 8A, 1.5A Output Power (W): 150 No. Outputs: M Case: Desktop Get a Quote
DTA-150A2-5Y-A01E Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, -12, 5 Output Current: 6A, 7A, 8A, 1.5A, 2A Output Power (W): 150 No. Outputs: M Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: Yes
Input Frequency: 47-63 Hz
Output
Output Voltage: 3.3, 5, 12, -12, 19
Output Current: 13.5A, 20A, 24.5A, 23A, 24.5A, 22.5A
Output Power (Watts): 150
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: AC Recycle
General
Efficiency: 80%
Environmental
Operating Temperature: 0 to 50°C
Storage Temperature: -10 to 70°C
Physical
Weight: 12 oz.

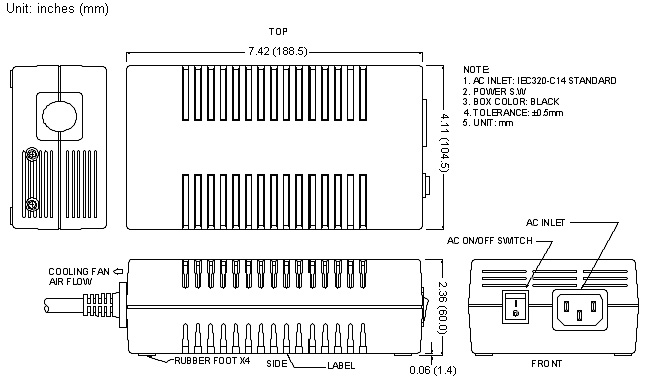

Dimensions: 7.42" x 4.11" x 2.36" (188.5 x 104.5 x 60 mm)
Notes & safety
Notes: 1. The DTA-150AD-A5 Series is designated as DTA-150A2-xY-zzzE where x = number of outputs and zzz is the output representative.
2. Any dual up to 5 output combinations are available. Please call factory for desired combination.
3. Ripple & Noise is measured at 20MHz bandwidth with a tantalum 10µF capacitor in parallel with a 0.1µF ceramic capacitor.
4. +5VSB / 2A is optional for above models.
5. The total output power is 150 watts maximum.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950, CSA C22.2-No.60950, TUV EN60950, CB IEC 60950
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950
