DTA-070

The DTA-070A Series is a high reliable AC/DC desktop power supply. All units are 100% burn-in and hi-pot tested, and offer safety approval and EMC compliance.

● Single Output ● High Reliability ● Input: 90~264 VAC ● 100% Hi-Pot Tested ● 100% Burn-In Tested ● Total Power: 50~70 Watts ● AC Input: IEC 320-C14 Inlet ● Safety Approvals, EMC Compliance ● Dimensions: 155(L) x 85(W) x 50(H) mm ● Over Voltage and Short Circuit Protected
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTA-050A-1Y05D0 Input Voltage: 90~264 Output Voltage: 5 Output Current: 10A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTA-050A-1Y06D0 Input Voltage: 90~264 Output Voltage: 6 Output Current: 8.3 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTA-050A-1Y07D0 Input Voltage: 90~264 Output Voltage: 7 Output Current: 7.14 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTA-050A-1Y08D0 Input Voltage: 90~264 Output Voltage: 8 Output Current: 6.25 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTA-050A-1Y09D0 Input Voltage: 90~264 Output Voltage: 9 Output Current: 5.5 A Output Power (W): 50 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y12D0 Input Voltage: 90~264 Output Voltage: 12 Output Current: 5.8 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y13D0 Input Voltage: 90~264 Output Voltage: 13 Output Current: 5.4 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y14D0 Input Voltage: 90~264 Output Voltage: 14 Output Current: 5A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y15D0 Input Voltage: 90~264 Output Voltage: 15 Output Current: 4.6 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y16D0 Input Voltage: 90~264 Output Voltage: 16 Output Current: 4.37 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y17D0 Input Voltage: 90~264 Output Voltage: 17 Output Current: 4.11 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y18D0 Input Voltage: 90~264 Output Voltage: 18 Output Current: 3.88 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y19D0 Input Voltage: 90~264 Output Voltage: 19 Output Current: 3.68 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y20D0 Input Voltage: 90~264 Output Voltage: 20 Output Current: 3.5 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y21D0 Input Voltage: 90~264 Output Voltage: 21 Output Current: 3.33 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y22D0 Input Voltage: 90~264 Output Voltage: 22 Output Current: 3.18 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y23D0 Input Voltage: 90~264 Output Voltage: 23 Output Current: 3.04 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTA-070A-1Y24D0 Input Voltage: 90~264 Output Voltage: 24 Output Current: 2.9 A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115
Input Voltage Range: 90~264
Input Frequency: 47-63 Hz
Output
Output Voltage: 5, 6, 7, 8, 9, 12, 13, 14, 15, 16 ,17, 18, 19, 20, 21, 22, 23, 24
Output Current: 2.9A, 3.04A, 3.18A, 3.33A, 3.5A, 3.68A, 3.88A, 4.11A, 4.37A, 4.6A, 5A, 5.4A, 5.5A, 5.8A, 6.25A, 7.14A, 8.3A, 10A
Output Power (Watts): 50, 70
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: AC Recycle
General
Efficiency: 80%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -10 to 70°C
Physical
Weight: 12 oz.
Dimensions: 6.10" x 3.35" x 1.97" (155 x 85 x 50 mm)

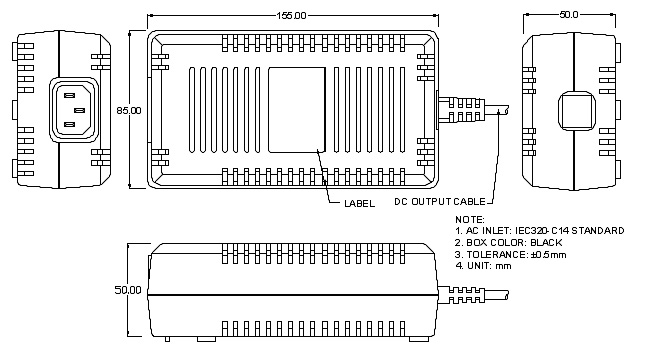

Notes & safety
Notes: 1. Peak–to–peak with 20MHz bandwidth with a tantalum 10uF in parallel with a 0.1uF ceramic capacitor.
2. AC Inlet: IEC 320-C14 Standard.
3. The box color is black.
4. Tolerance: ±0.5mm.
5. The unit is measured in mm.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950, CSA C22.2-No.60950, TUV EN 60950, CB IEC 60950
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950
